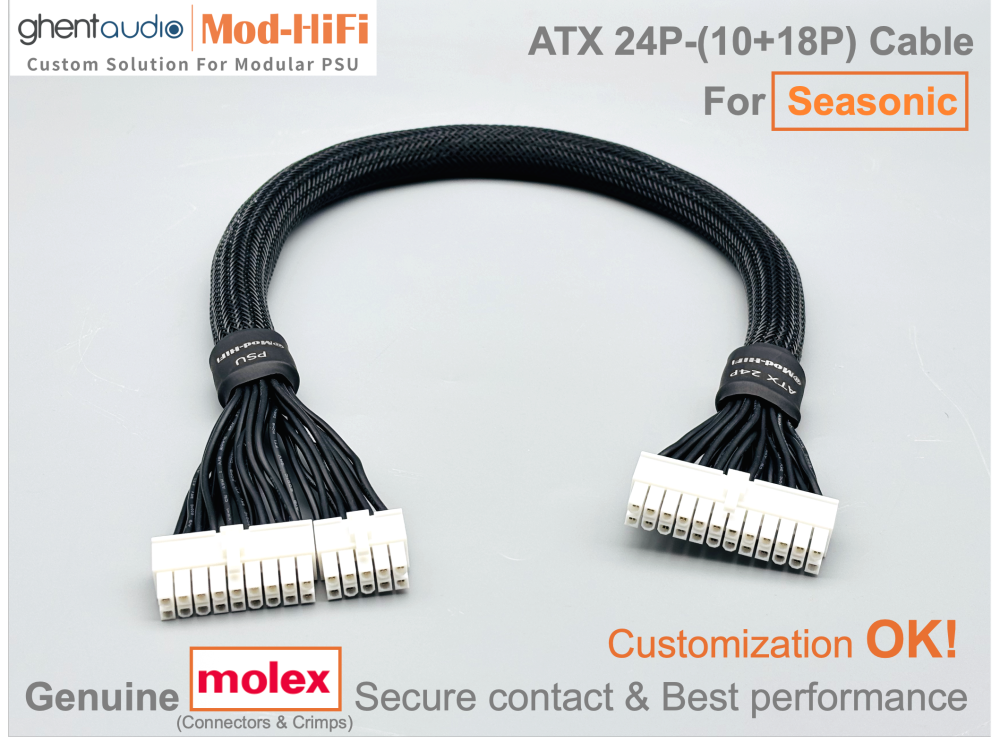

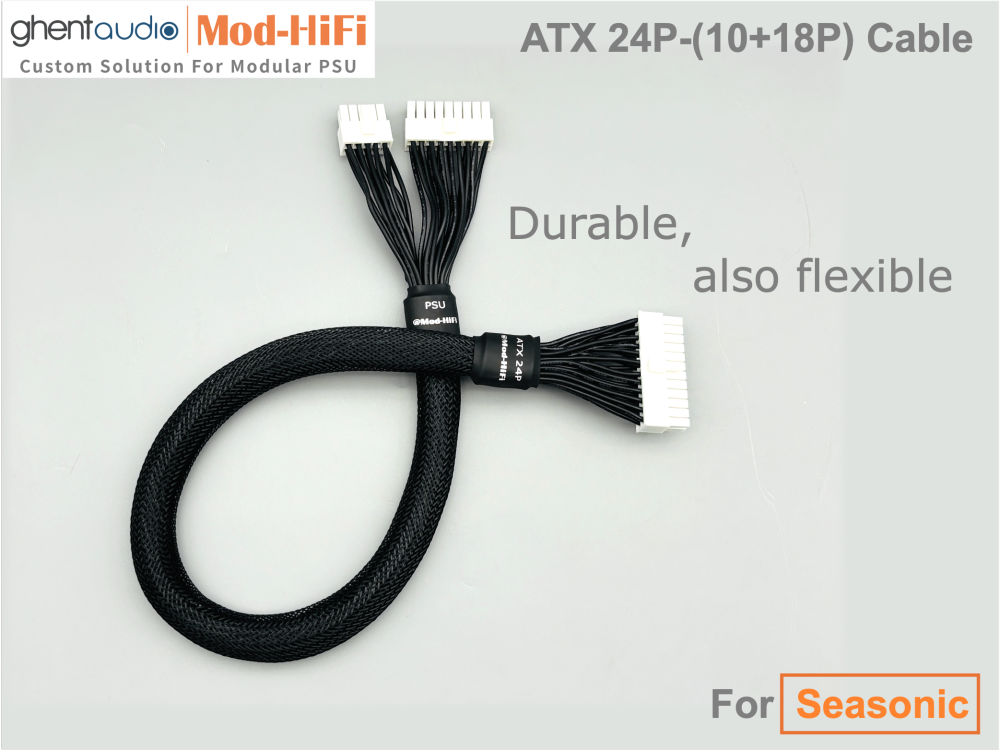

ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700

SKU: 1A2403-18#-60

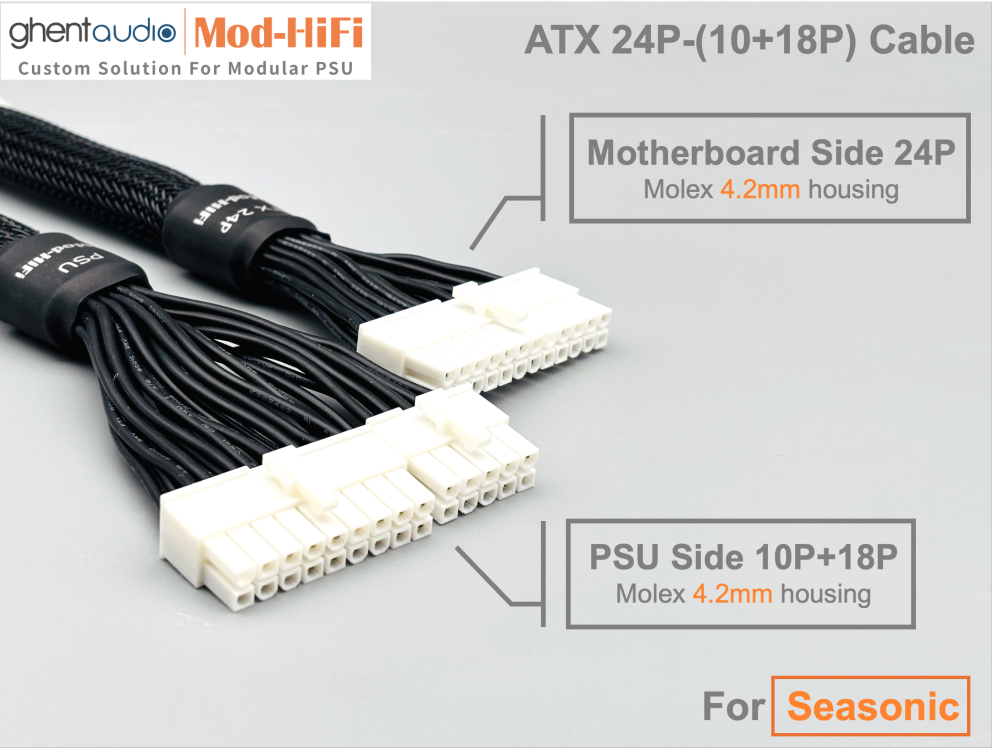

ATX 24P Cable, directly applied to PSU and motherboard
Hook-up wires options:
  - UL3239 Silicone, 18AWG (black)
  - 16AWG on 12V pins
  - UL3239 Silicone, 16AWG (black)
Length: tip-to-tip length, customizable
Black sleeving by default, customizable
Compatible with Seasonic PX-450, PX-550, TX-600, TX-700

0.0 (0 Reviews)
0 Sold
$0.00 $19.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • HOOK-UP WIRE:
  • LENGTH:
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (0)
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
1/1
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • ATX 24P Cable for Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700
  • Description
  • Order Handling

✅ Brief
- Qty: 1 pcs
- Cable Type: ATX 24P
- Hook-Up Wires Options
    - UL3239 silicone wire, 18AWG (black)
    - 16AWG on 12V pins
    - UL3239 silicone wire, 16AWG (black)
 - Length (tip-to-tip)
    - 60cm / 24 inch, for full tower builds
    - 30cm / 12 inch, for compact builds
    - other lengths customizable
- Style: black sleeving by default

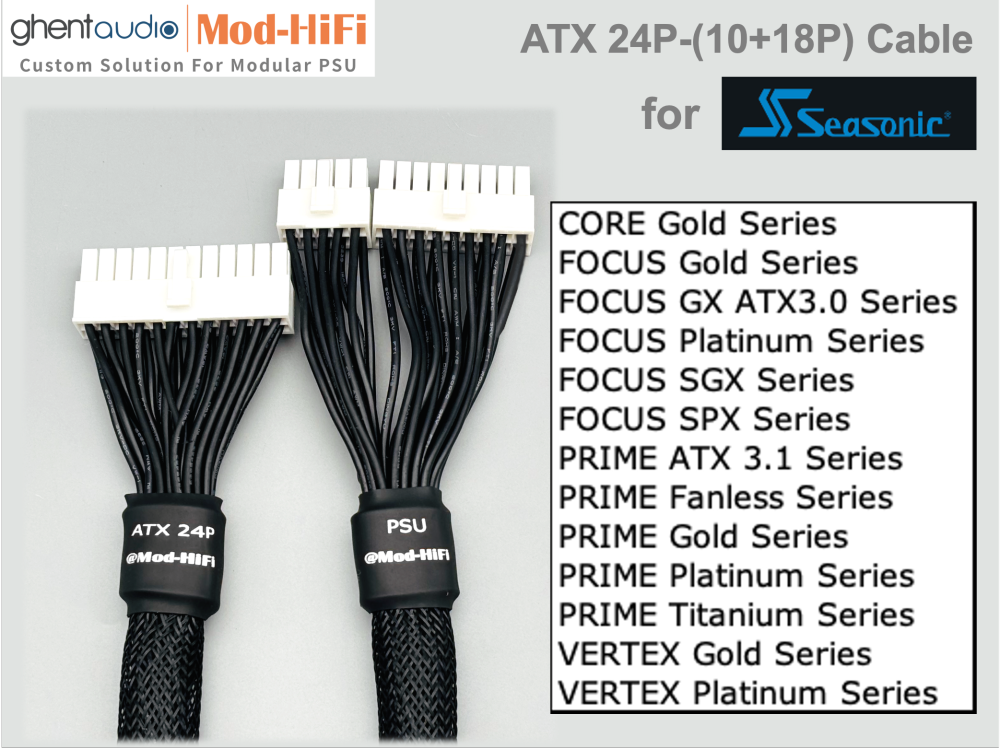

- Compatibility: Seasonic PRIME Fanless Series: PX-450, PX-550, TX-600, TX-700

🌟 Features

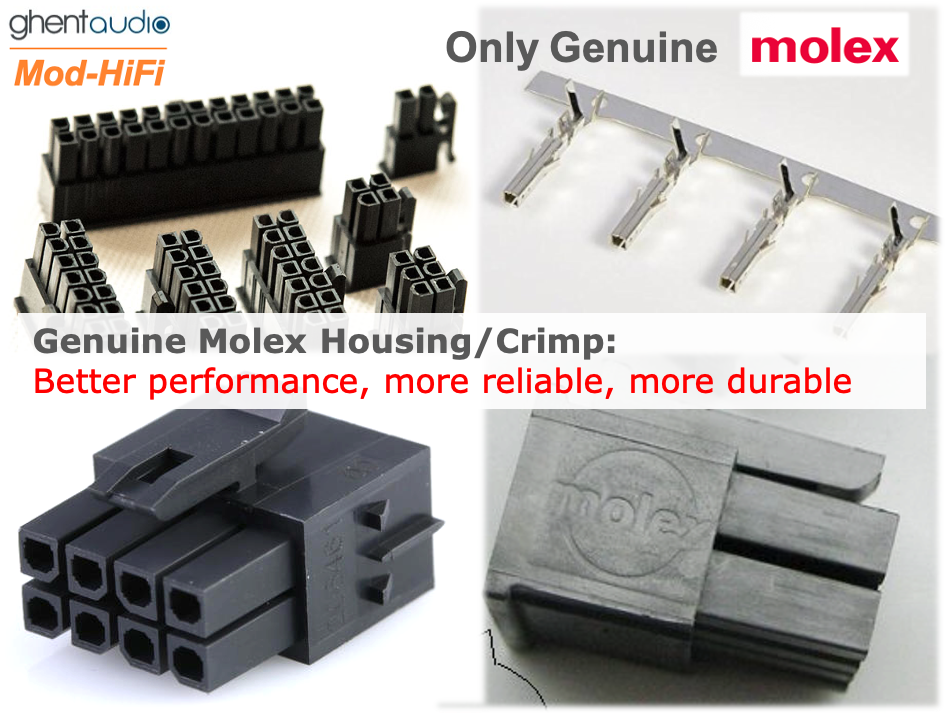

- Genuine Molex® connectors and terminals, ensuring safe and firm connection

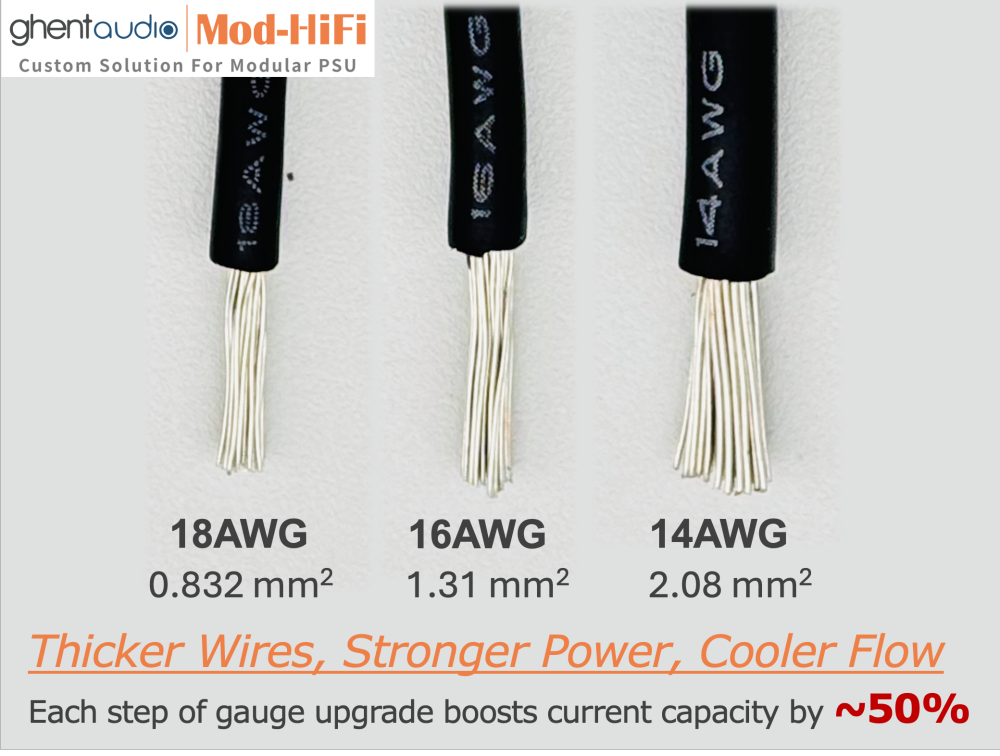

- UL3239-certified high quality, AWG18 ensuring stable power transmission
- 16AWG applied on critical 12V and related GND paths, greatly enhancing PCI-E slots powering
- Full 16AWG Upgrade, ultimate current capacity for motherboard power cables

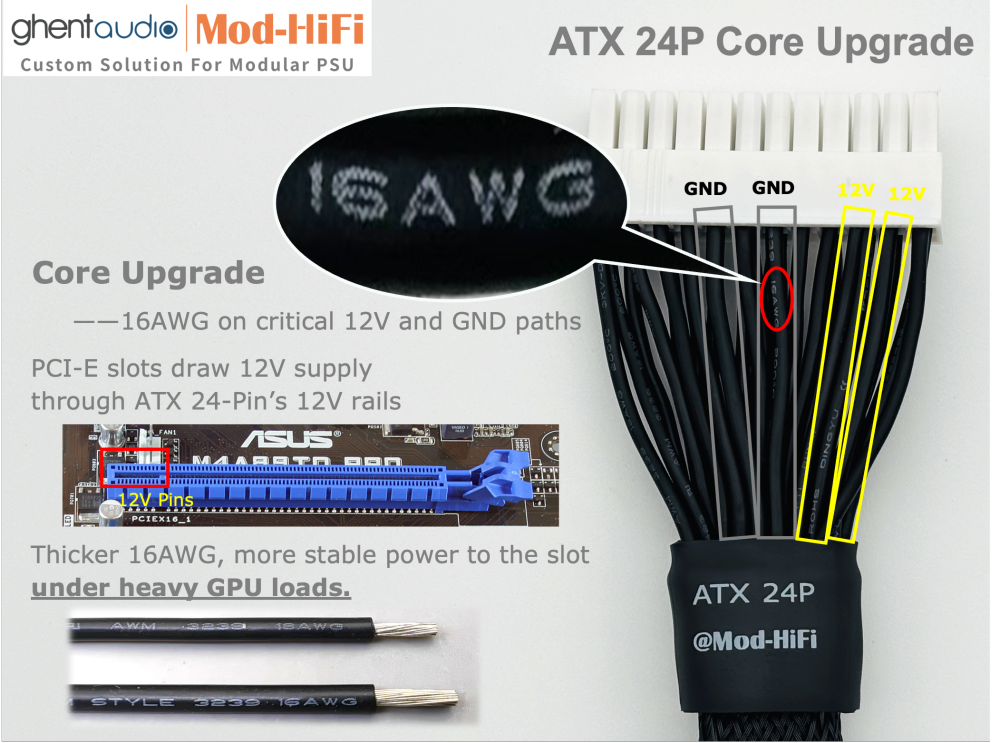

🛠️ About 16AWG on 12V Paths

📦 Order Handling & Custom Options
- Handling Time:
    - For standard cables: 1-2 business days
    - For custom orders*: may require 5 business days
    - For bulk orders: may require 14 business days or longer depend on the volume
    - All cables are carefully handmade, thanks for your patience
- Up-Level price policy for custom cable length
    - For ATX 24P, SATA, Molex LP4 cables: 20cm = 30cm, 50cm = 60cm, > 60cm = extra price...
    - For CPU/GPU cables: 30cm = 40cm, 60cm = 70cm, > 70cm = extra price...
- For any custom needs** (e.g. lengths, wire color, sleeving or connectors...), please leave a comment at the "Special Instructions" section when checking out or contact us (rui@ghentaudio.com) immediately after placing the order.
- Welcome any other questions, please mail to rui@ghentaudio.com to contact us.

* Custom orders cannot be returned or refunded, unless the item is defective or damaged due to our fault.
** Note that extra $2 will be charged for customization other than lengths, we will contact you in case your needs are beyond our current stock.
